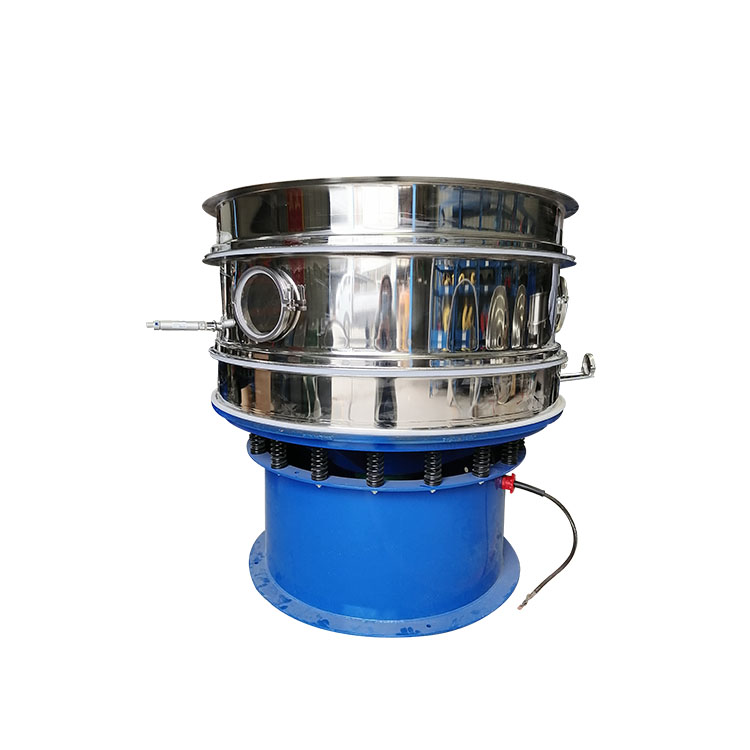

vibratory screening equipment
vibratory screening equipment is widely used for particle, granular, powder, liquid material grading and sieving.
Description
Product brief
vibratory screening equipment is widely used for particle, granular, powder, liquid material grading and sieving. It is also a important step
for material handling production line, often is used to work together other equipment such as conveyor, mixer etc.
Working principle
The basic principle of vibratory screening equipment is the heavy hammer (unbalanced heavy hammer) installed in the electrical axis transform
the motor’s rotary motion into horizontal, vertical, and inclined three dimensional movement, then this movement passed to the screen surface.
By adjusting the upper and lower ends of heavy hammer’s phase angle, which can change the trajectories of materials on the screen surface.
Features
Full enclose, friend environment
High efficiency, exquisitely designed and durable, any powder, particle and liquid can be screened.
Easy to change the screen mesh, easy to operate and clean.
Technical parameters
| Model | Diameter (INCH) | Sieving area (M2) | Screen mesh | Layer | Motor Powder(kw) | package size(mm) |
| B-16(400) | 16 | 0.0962 | 2-500 | 1-5 | 0.25 | 580*580*560 |
| B-24(600) | 24 | 0.2375 | 0.55 | 800*800*750 | ||
| B-30(800) | 30 | 0.4416 | 0.75 | 900*900*750 | ||
| B-40(1000) | 40 | 0.7085 | 1.1 | 1160*1160*810 | ||
| B-48(1200) | 48 | 1.0382 | 1.5 | 1360*1360*885 | ||
| B-60(1600) | 60 | 1.5386 | 1.5 | 1850*1850*990 | ||
| B-72(2000) | 72 | 2.2687 | 4 | 2200*2200*1050 |
Application:
- Chemical industry: resin, pigment, palette, etc. powders and particles.
- Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, slurry, etc. powders and particles.
- Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, food additive, bean milk, juice, etc. powders and particles.
