vibrating screen machine
The vibrating screen machine also is one of kind of straight discharging vibrating screen
Description
Product brief

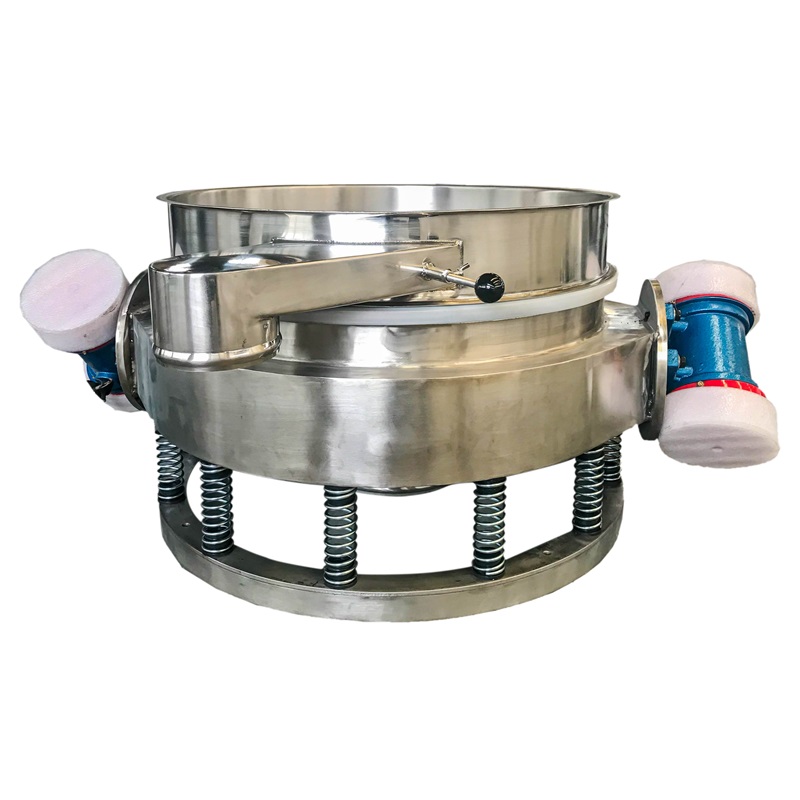

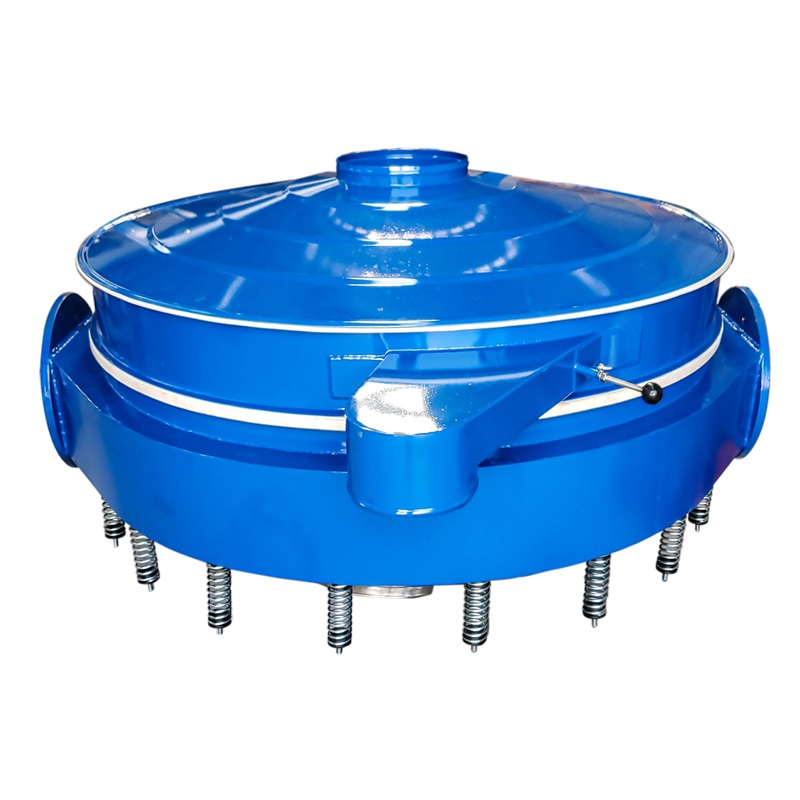

The vibrating screen machine also is one of kind of straight discharging vibrating screen. It adopts two imbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the machine, instead of one motor positioned beneath the screening chamber, reducing overall height . The design also allows vertical alignment of the top inlet and bottom outlet, allowing on-size material to descend through the screen in a straight-through path at high rates. Oversize material is ejected through a spout at the periphery of the screen.
Features
- Simple and compact structure , easy maintenance , Failure of small
- Fully enclosed structure , eliminate dust , noise , quiet and environmentally friendly
3The large flow spout at the bottom , to facilitate the installation of the pipeline operations .
- Upper discharge port can be any adjustment within 360 ° for easy installation and use .
Technical parameter
| Model | Inlet diameter | Mesh Diameter | Effective Area | Model | Power | Frequency | Amplitude |
| (mm) | (r/m) | (mm) | |||||
| BZP-600 | 300 | 5~200 | 0.2124 | 8-4 | 0.35 | 1450 | 3~5 |
| BZP-800 | 300 | 5~200 | 0.4072 | 10-4 | 0.55 | 1450 | 3~5 |
| BZP-1000 | 380 | 5~200 | 0.6221 | 16-4 | 0.75 | 1450 | 3~5 |
| BZP-1200 | 400 | 5~200 | 0.9331 | 30-4 | 1.5 | 1450 | 3~5 |
| BZP-1500 | 400 | 5~200 | 1.5175 | 32-4 | 2.2 | 1450 | 3~5 |
| BZP-1800 | 400 | 5~200 | 2.2432 | 40-4 | 2.2 | 1450 | 3~5 |
Application
vibrating screen machine is used for flour, starch , washing powder , metal powder , additives , chemicals , non-mining industries such as particles , the powder screening of a rough , precision screening , large capacity , easy to combine with the production line .
