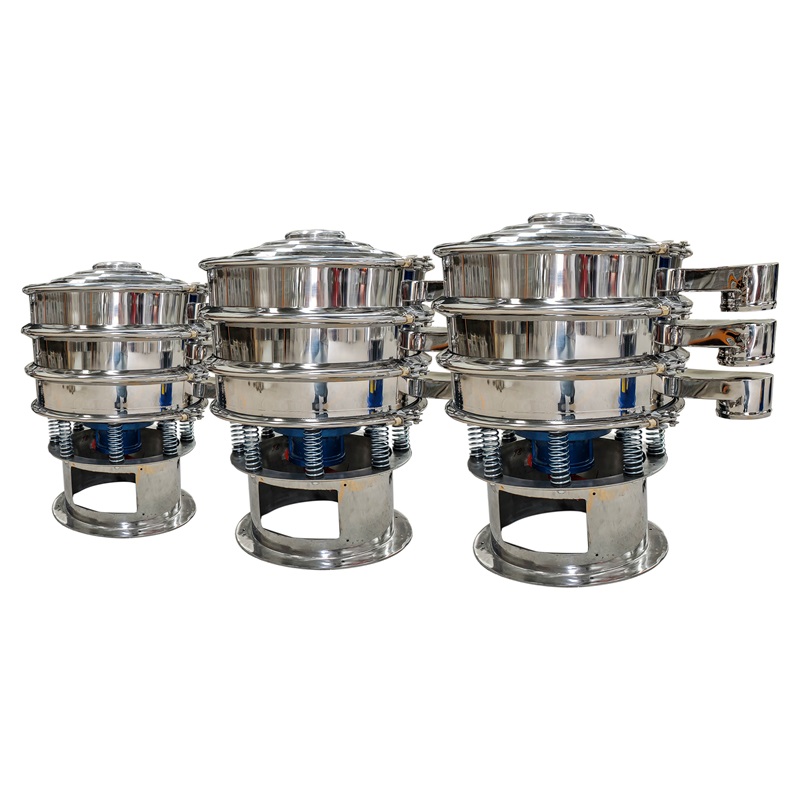

Vibrating screen deck
Vibrating screen deck can meet the requirements of most material in grading granulated stuffs and screening out powder and liquid in different operation.
Description
Product brief
Vibrating screen deck can meet the requirements of most material in grading granulated stuffs and screening out powder and liquid
in different operation. It can continuously and inerrant finish the screening process when deal with 2-325 mesh material.
We can custom the vibrating screen dia according to your output demand. The dia range is 16 inches to 72 inches.
Features
1 :Vibrating screen material: carbon steel, stainless, plastics and PU material.
- The layer is from 1-5 layer and get 2-6 size products.
- Processing technic: sand blast, mirror polish, spraying plastics
- It can be used for dry or wet material, granular or power, liquid sieving and filter.
Main technical parameter
| Model | Diameter (INCH) | Sieving area (M2) | Screen mesh | Layer | Motor Powder(kw) |
| B-16(400) | 16 | 0.0962 | 2-500 | 1-5 | 0.25 |
| B-24(600) | 24 | 0.2375 | 0.55 | ||
| B-30(800) | 30 | 0.4416 | 0.75 | ||
| B-40(1000) | 40 | 0.7085 | 1.1 | ||
| B-48(1200) | 48 | 1.0382 | 1.5 | ||
| B-60(1600) | 60 | 1.5386 | 1.5 | ||
| B-72(2000) | 72 | 2.2687 | 4 | ||
| Customized | Charging port: can be soft pipe or hopper
Cover: Polishing or sandblast Material: stainless steel, carbon steel, material contact part stainless Motor brand: Oli motor well known brand or Chinese ordinary motor Discharging port: Straight Flo or valve control |
||||
Application
Vibrating screen deck is many industries, covering food, chemical, ceramic, metallurgy, pollution treatment and so on,
dealing with various kinds of materials.

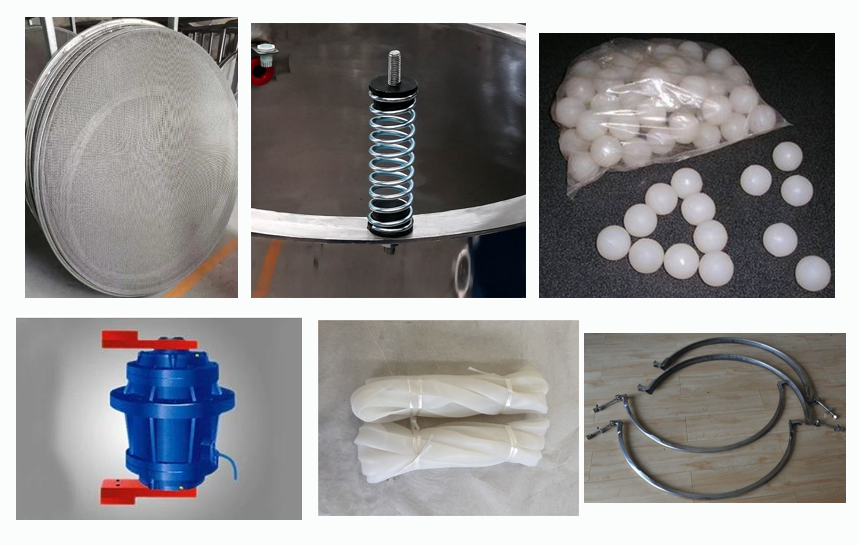

Wear parts
Vibrating screen work for a long time, there are parts easy to wear. To reduce downtime loss, we advice you to prepare some wear parts,
such bouncing ball, gasket, clamp,support spring etc.
