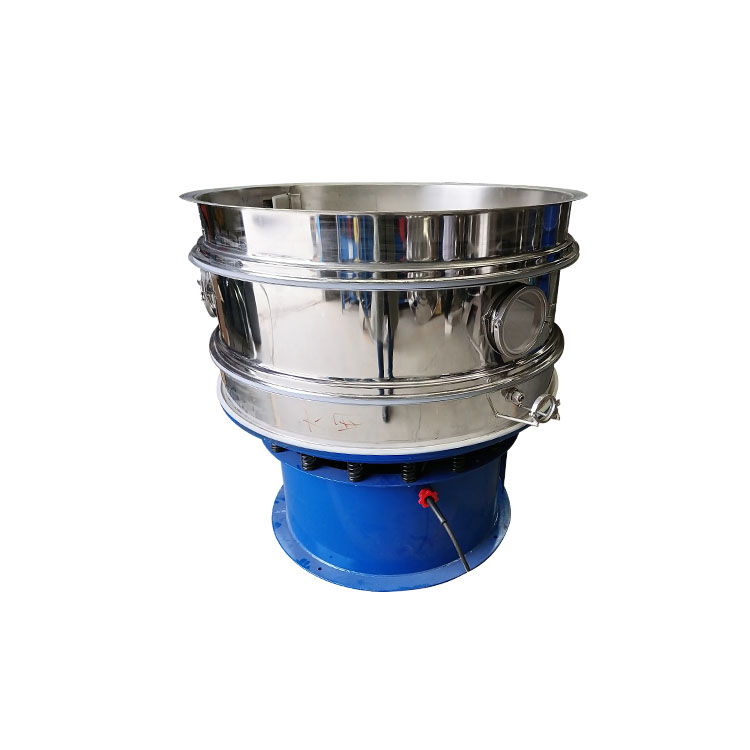

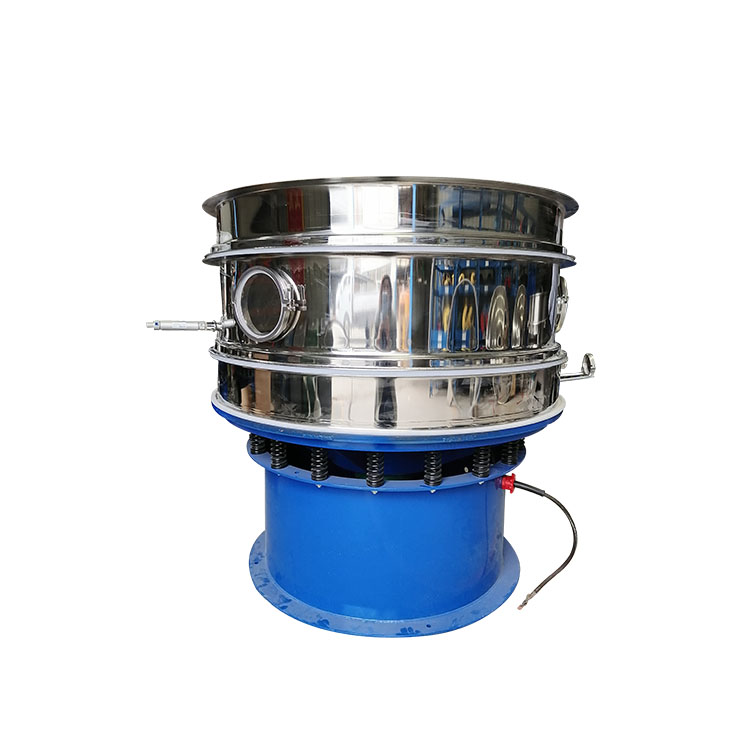

ultrasonic vibrating screen
ultrasonic vibrating screen has high efficiency and accuracy screening machine
Description
Product brief
ultrasonic vibrating screen has high efficiency and accuracy screening machine. It often is used to solve difficult screening material, such as ultra fine powder, patcky material etc. The ultrasonic system adopt ultrasonic transducer to convert electricity energy into mechanical energy. High frequency break down the mesh tension and make effectively stainless mesh wire free friction and prevent the greater or smaller particles blocking the mesh.
It makes the material fast screening by ultrasonic mesh frame vibrating caused by ultrasonic transducer vibration. There are two kinds installation way for the ultrasonic device, one is inside the vibratory sieve, the other kind is outside of sieve.
Inside installation way cost is low, but maintenance is complicated.
Features:
Less cleaning time compare withed bouncing ball
Disintegrate adhere material and reduce the oversize product.
High screening accuracy
Long screen mesh service life
Parameters
| Model | R-30 | R-40 | R-48 | R-60 | R-72 | |
| Diameter (INCH) | 30 | 40 | 48 | 60 | 72 | |
| Sieving area (M2) | 0.4183 | 0.6359 | 0.94 | 1.5386 | 2.2687 | |
| Motor Powder(kw) | 0.55 | 1.1 | 1.1 | 1.5 | 4 | |
| package size(mm) | 900*900*750 | 1160*1160*810 | 1360*1360*885 | 1850*1850*990 | 2200*2200*1050 | |
| weight( kg) | 158 | 245 | 330 | 478 | 690 | |
| Screen mesh | 2-635 | |||||
| Layer | 1-5 | |||||
Application:
ultrasonic vibrating screen is used to sieve silicon carbide, alloy powder, Molybdenum powder,stainless powder, tungsten powder,powder painting,quartz powder,coffee powder, Electromagnetic powder,anode material,laser powder etc.
