single deck vibrating screen
single deck vibrating screen is simple rotary sieve and has one deck mesh and can get two fractions.
Description
Product description

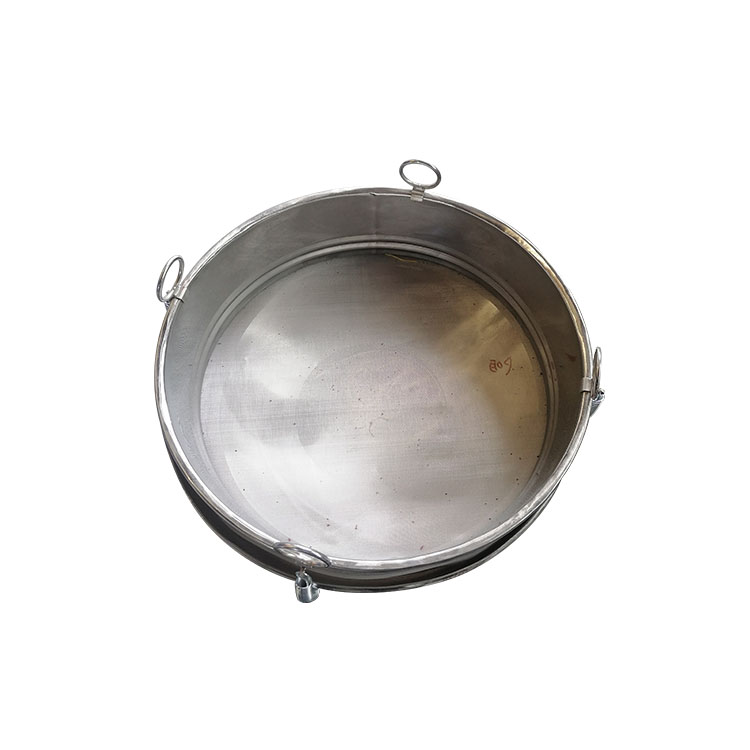

single deck vibrating screen is simple rotary sieve and has one deck mesh and can get two fractions. It has same parts with ordinary vibrating screen. It’s function is scalping , grading and filtering for particle, powder and liquid. 450 type vibrating screening filter is composed of body, vibration motor, discharge output and screen control device.
Features
Occupy small space, be convenient to move
Low noise, screening area is 450mm
Quick replace the screen mesh
Full automatic control
Technical parameters
| Model | Power | Effective screening diameter | Dimension | Amplitude |
| (mm) | ||||
| 450 type | 0.18kw | 380mm | 460*550*665 | 2-5mm |
| Noise level | very small | |||
| Weight | one person can pike it up | |||
| Mobility | universal wheels designs | |||
| Customization | accept | |||
| Material | parts contacted with screened material are stainless steel 304 | |||
| machine base is made of carbon steel | ||||
Application
single deck vibrating screen is often used to food and pharmaceuticals industry for small screening capacity. The wire mesh in liquid filtering can be up to 5 microns, the finest mesh size in powder screening is 400 mesh. It is also suitable for ceramic, paint, coating, ink, pharmaceutical and food industries.
