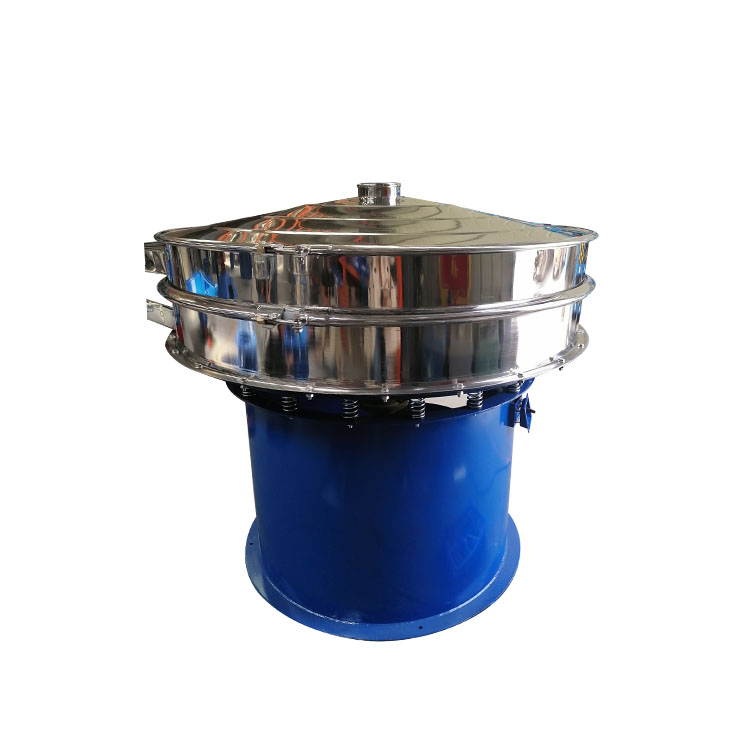

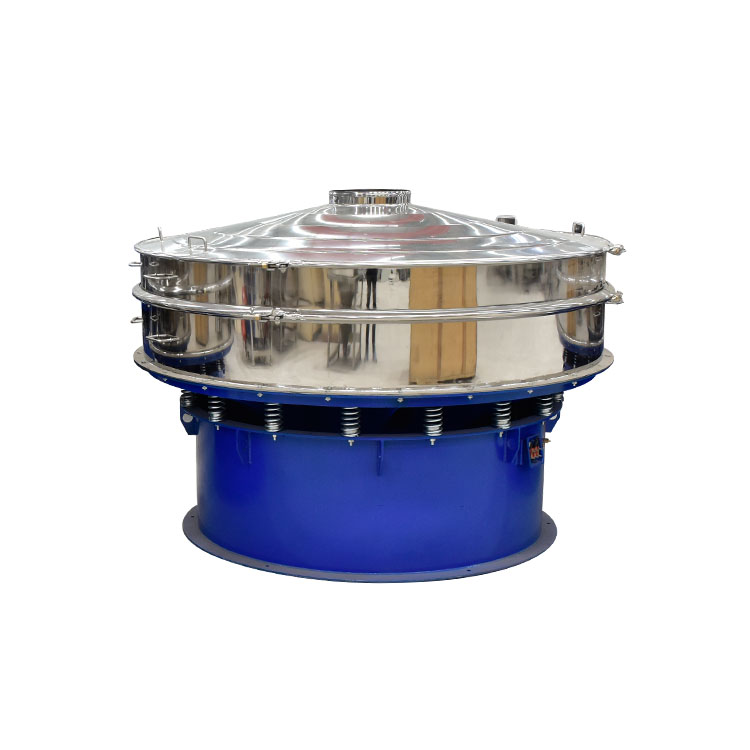

sand screening machine
sand screening machine is one kind of fine powder grading equipment.It can be used for particles material, powder material and liquid screening.
Description
Product description
sand screening machine is one kind of fine powder grading equipment.It can be used for particles material, powder material and liquid screening.
Sand screening machine can be designed according to your output demand, at present, our standard is 400 mm to 600 mm sanding screening machine for sale.
Features:
- High screening efficiency, screening precision is more than 95%.
- Outlet can be adjustable in the range of 360 °,which is convenient to arrange.
3.25 µm to 25 mm aperture quick change mesh – frames.
- Automatic ejection of oversize materials.
Technical parameters
| Model | B-16 | B-24 | B-30 | B-40 |
| Diameter (INCH) | 16 | 24 | 30 | 40 |
| Sieving area (M2) | 0.0907 | 0.2289 | 0.4183 | 0.6359 |
| Motor Powder(kw) | 0.18 | 0.25 | 0.55 | 1.1 |
| package size(mm) | 580*580*560 | 800*800*750 | 900*900*750 | 1160*1160*810 |
| weight( kg) | 55 | 98 | 158 | 245 |
| Screen mesh | 2-500 mesh | |||
| Customized service | Charging port: can be soft pipe or hopper
Cover: Polishing or sandblast Material: stainless steel, carbon steel, material contact part stainless Motor brand: Oli motor well known brand or Chinese ordinary motor Discharging port: Straight Flo or valve control |
|||
Application
Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.
Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
Our service
1.Sample material can be free analysis and test in laboratory.
2.24 hours a week online & quick response within 1 hour.
3.Booking hotel and tickets for customers and Free transportation & meals during visit our factory.
4. Standard equipment can deliver within 3-5 working days and delivery time guaranteed.
