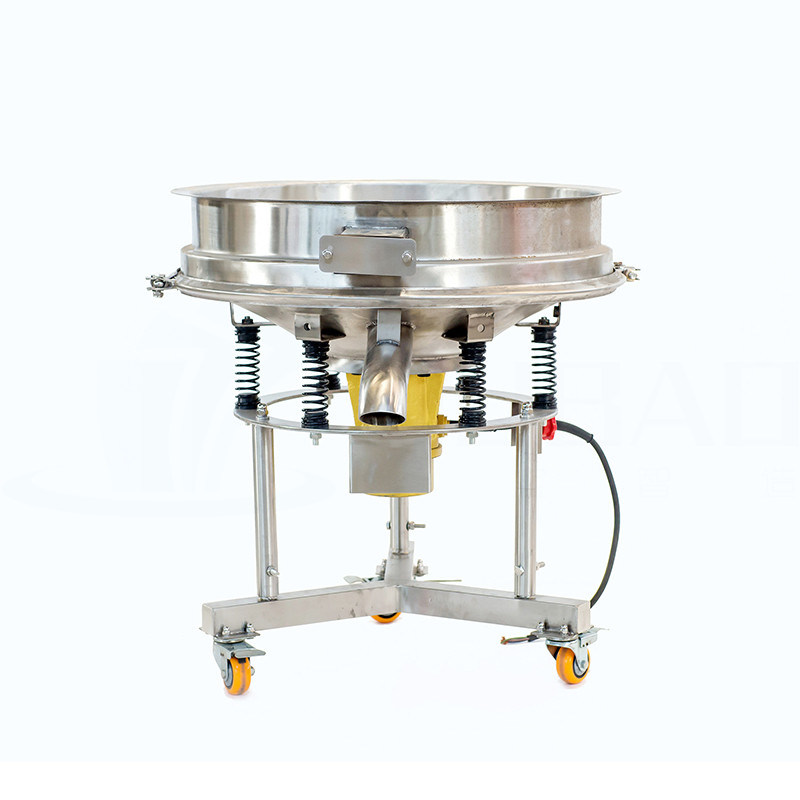

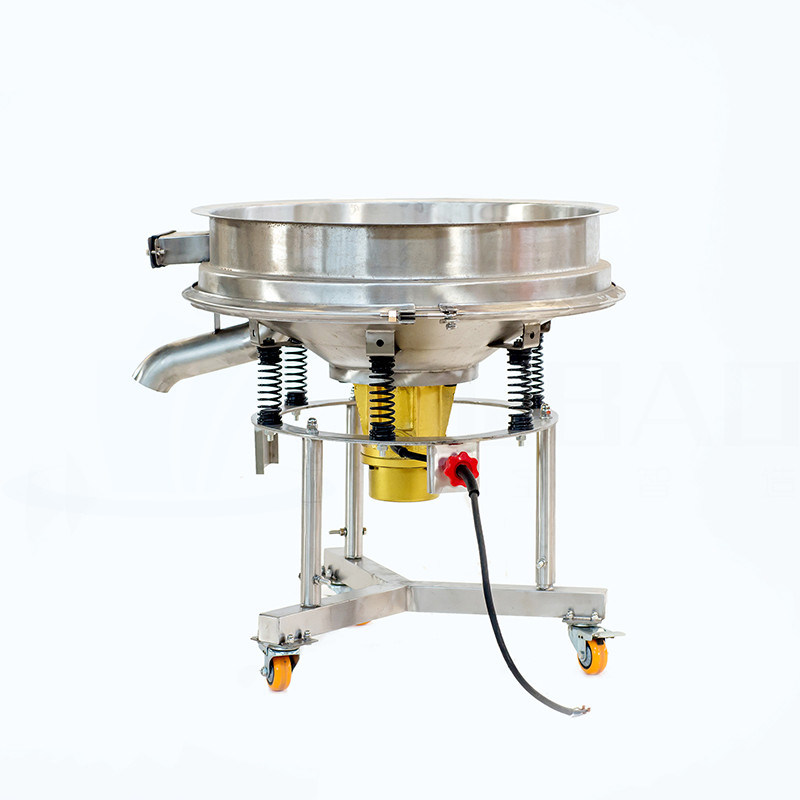

Round vibrating screen
Round vibrating screen is often for slurry or pulp filtering and sieving.
Description
Product brie
Round vibrating screen is often for slurry or pulp filtering and sieving. It adopted high frequency vibration motor and equipped with flexible support frame, its height can be adjusted according to your working place and height of production line.
Features
high frequency vibrating screen rotation speed is 2920 RPM
300 mesh sieve mesh is difficult to screening, but high frequency vibrating screen can effective screening.
Technical parameters
| Model | GPS-2 | GPS-3 | GPS-4 | GPS-5 | GPS-6 | GPS-8 |
| Sieving Area (M2) | 2 | 3.1 | 4.5 | 5.2 | 6 | 8.1 |
| Concentration | 30%-40% | 30%-40% | 30%-40% | 30%-40% | 30%-40% | 30%-40% |
| Capacity (T/H) | 5-10 | 8-13 | 15-25 | 20-30 | 24-36 | 32-48 |
| Motor (KW) | 0.36 | 0.6 | 0.72 | 1.1 | 1.5 | 2.2 |
Application
Round vibrating screen is used for Solid – Liquid Separation, Removal of solid from liquid, pulp from water, lumps from slurry, final get the desired raw material, such as slurry, glaze, paint and so on.
