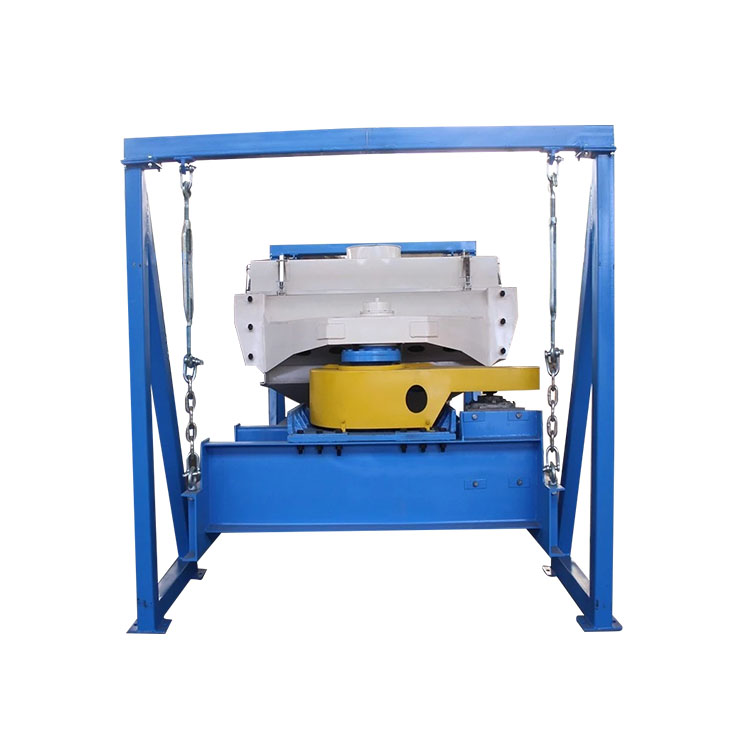

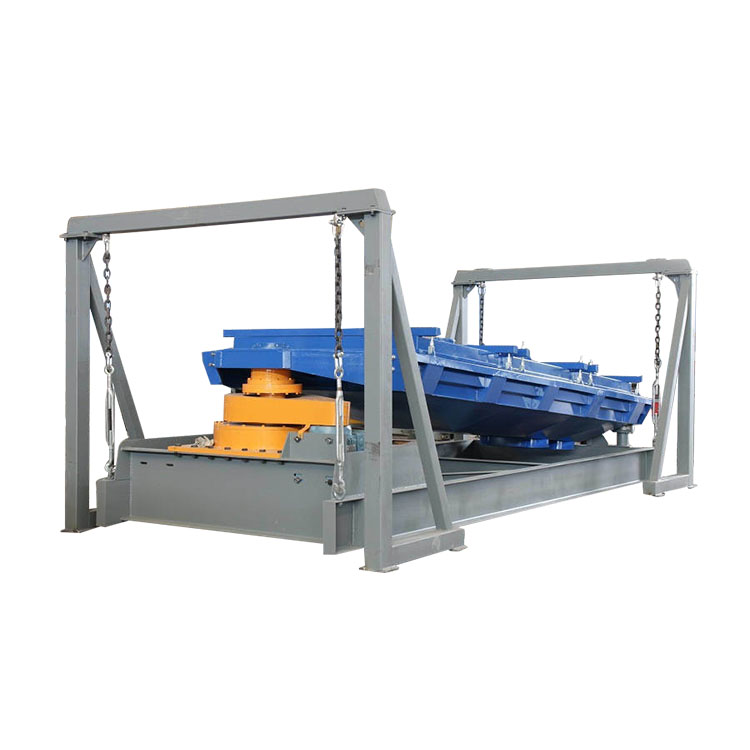

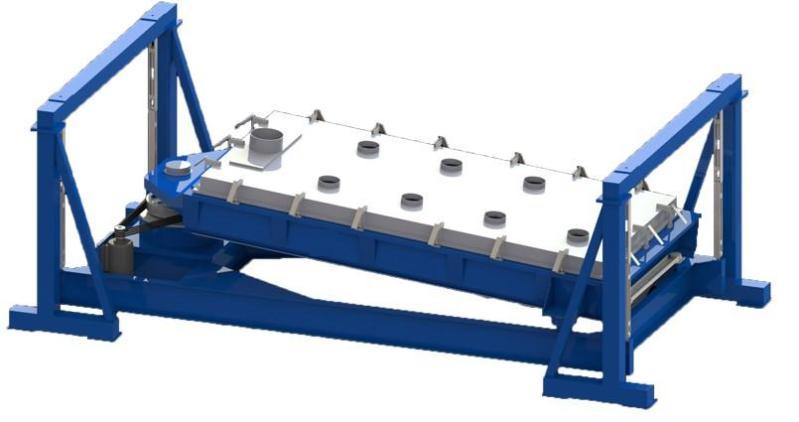

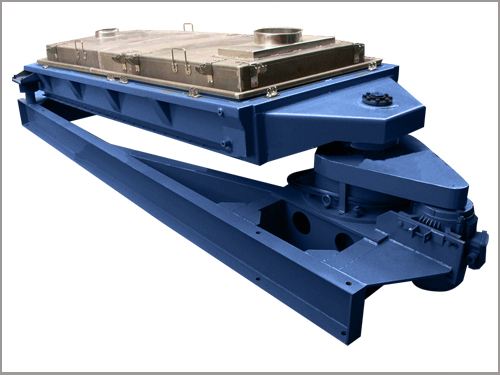

Rotex vibrating screen
Rotex vibrating screen often is used to separate different particle sands for different usage in mineral industry.
Description
Product description
Rotex vibrating screen often is used to separate different particle sands for different usage in mineral industry. Rotex vibrating screen is improved base on traditional linear vibrating screen. It realize high accuracy screening on the base of linear vibrating screen’s large capacity. So it become popular screening machine in quarry.
Working principle
This machine utilizes a gyratory-reciprocating motion and provide a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the inlet, gradually changes to elliptical motion at the center, and finally to a straight-line motion at outlet, keeping the material in constant contact with the screen surface without deterioration.
Technical parameter
| Model | Effective screening area(m²) | Power(kw) | Screening angle(°) | Layer number | Rotation frequncy(r/min) | screening box travel(mm) | Overall dimensions(mm) |
| BPH-1036 | 3.6 | 3 | 5~8 | 1~8 | 180~260 | 25~60 | 4442*1700*1917 |
| BPH-1236 | 4.32 | 4 | 5~8 | 1~8 | 180~260 | 25~60 | 4442*1900*1917 |
| BPH-1536 | 5.4 | 5.5 | 5~8 | 1~8 | 180~260 | 25~60 | 4442*2200*1917 |
| BPH-1836 | 6.48 | 7.5 | 5~8 | 1~8 | 180~260 | 25~60 | 4442*2500*1917 |
| BPH-2036 | 7.2 | 7.5 | 5~8 | 1~8 | 180~260 | 25~60 | 4442*2700*1917 |
Application:
Application industry: abrasive, food, sugar, chemical, pharmaceutical, mining, metallurgy, recycling industries, etc.
Applicable material: Abrasives, animal feed, carbon products, chemicals, clay, fertilizer, food products, minerals, plastic pellets, etc
FAQ
- What material you will sieve and material characteristics, such as solid, liquid, particle, or powder?
- What sieving purpose you need to realize, grading, de-rust, or filtering?
- 3. How many is the output you demanded?
- 4. What is your power voltage?
- 5. How many decksof screen you need?
