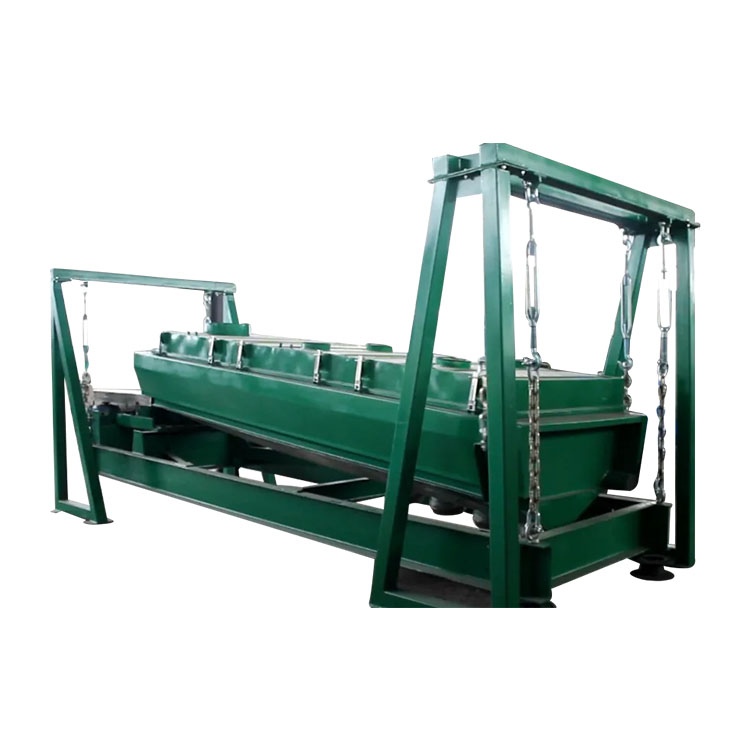

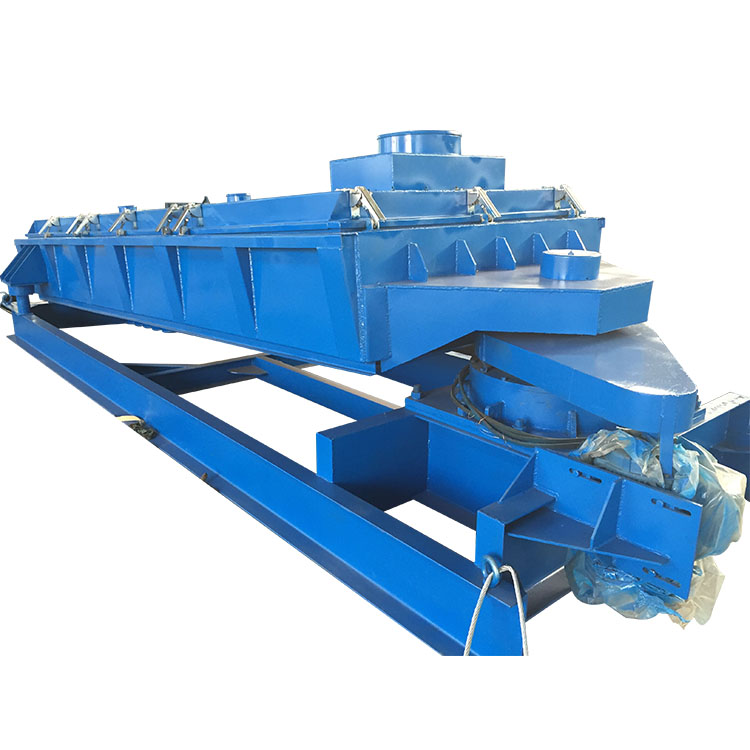

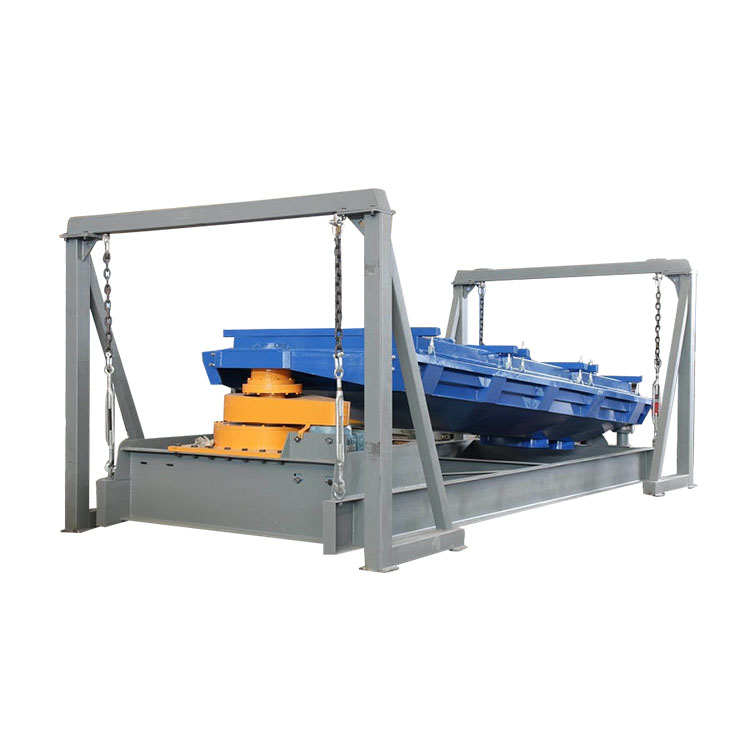

Rotex screen
Rotex screen also called reciprocating sifter which is large output and high screening accuracy sifting equipment.
Description
Production brie
Rotex screen also called reciprocating sifter which is large output and high screening accuracy sifting equipment. The material travel trajectory on screen surface: circular on the inlet to make the smaller particle quick flow down mesh, then change the ellipse motion in the middle of screen surface, linear motion at the end of outlet to make larger particle discharge from outlet.Compared with rotary vibrating screen, the gyratory sifter can meet large yields base on screening accuracy. Compared with linear vibration sieve, it not only can realize large output, but also can meet high screening accuracy.
Advantages:
Full enclose without dust pollution
Every layer is installed with an anti-blocking and cleaning facility, which is able to clean mesh while sieving.
Low height conveying equipment is required for elevating material to the feed port.
High screening efficiency and large sieving capacity
Technical parameter
| Model | BPH-1036 |
| Screen size | 1.5*3.6M |
| Screening area | 4.5-9 m2 |
| Screen inclination | 5~8 |
| Layers | 1~8 |
| Power | 5.5 kw*2 |
| Rotation frequency (r/min) | 180-260 |
| screening box travel(mm) | 25-60 mm |
Application
rotex screen is a new screening device which is developed for screening of bulky urea and fertilizer, also used widely for agriculture to screen grain and cereal. It is a kind of improvement equipment for increasing screening capacity.
