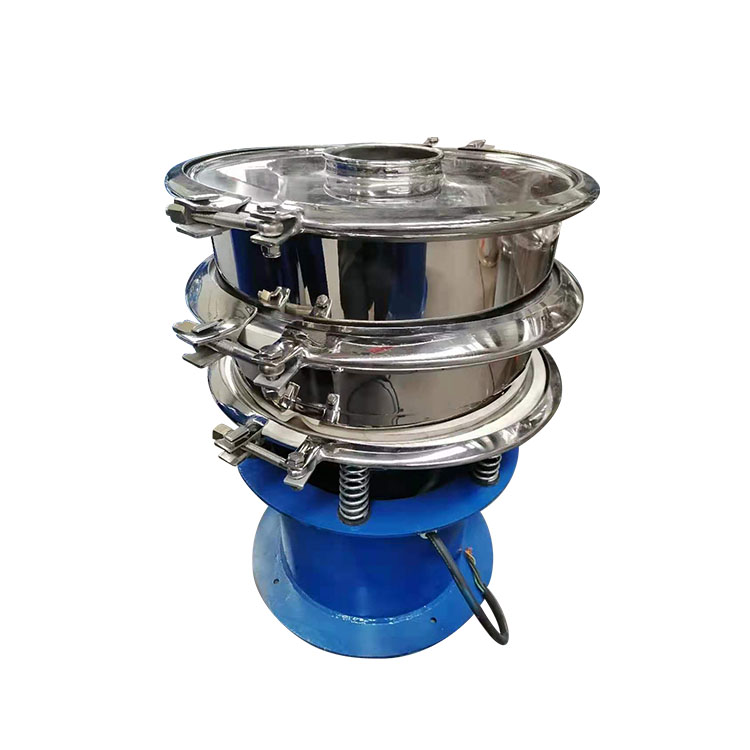

Rotary vibrating screen
Rotary vibrating screen is designed as a high-precision screening machinery for dry and wet material
Description
Product brief
Rotary vibrating screen is designed as a high-precision screening machinery for dry and wet material.

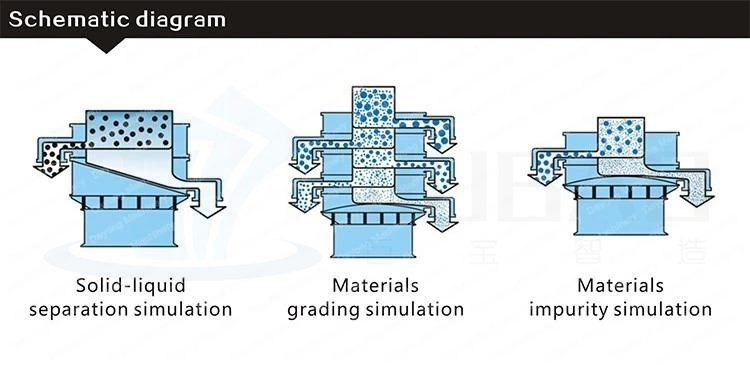

It has following function: scalping, grading, filtering etc.
Product parts

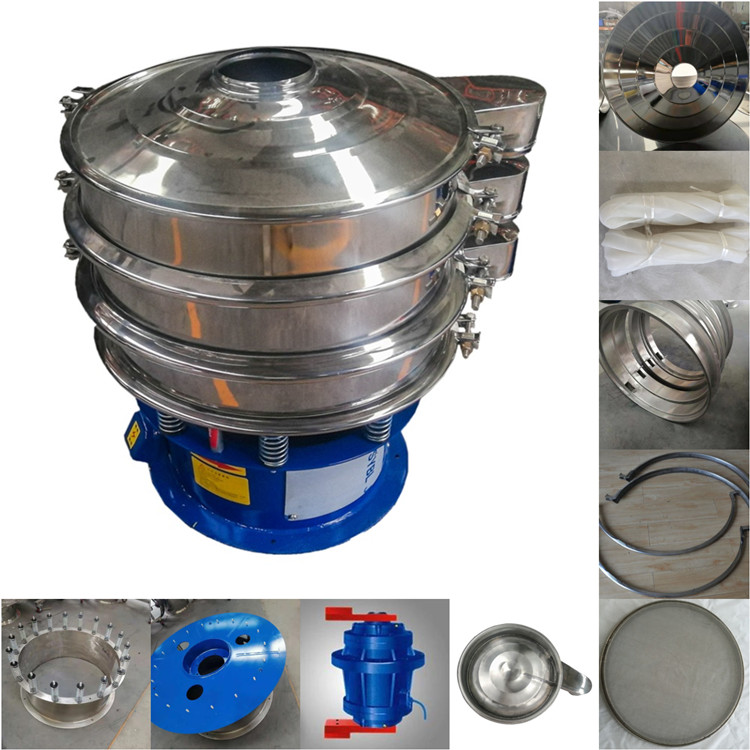

Rotary vibrating screen is composed of screen base, vertical motor, bottom frame, screen frame, screen mesh anti dust
cover and installation accessories such as spring, clamp ring, quick release etc.
Technical parameter
| Model | B-16 | B-24 | B-30 |
| Diameter (INCH) | 16 | 24 | 30 |
| Sieving area (M2) | 0.0907 | 0.2289 | 0.4183 |
| Motor Powder(kw) | 0.18 | 0.25 | 0.55 |
| package size(mm) | 580*580*560 | 800*800*750 | 900*900*750 |
| weight( kg) | 55 | 98 | 158 |
|
Screen mesh |
2-500 mesh | ||
| Layer | 1-5 | ||
| Customized service | Charging port: can be soft pipe or hopper
Cover: Polishing or sandblast Material: stainless steel, carbon steel, material contact part stainless Motor brand: Oli motor well known brand or Chinese ordinary motor Discharging port: Straight Flo or valve control |
||
Advantages
Maintenance is simple.
It can be single, multi layer use.
Closed, no dust overflow scattered
The discharging outlet can be rotated at 360 degree, facilitating the installation of matching equipment.
Application
The Rotary vibrating screen is used for processing starch powder, sugar powder, sale, rice flour, milk power,
sauce, fruit juice, resin powder, detergent powder, cosmetic, Chinese medicine powder, aluminum powder, copper powder, electrode powder, and so on.
