linear vibrating screen
linear vibrating screen is a kind of small and medium size multi-layer screening machinery. Its performance has reached the international advanced level
Description
Product brief
linear vibrating screen is a kind of small and medium size multi-layer screening machinery. Its performance has reached the international advanced level. Any dry material with a diameter of 0.074mm-20 mm could be handled. The maximum granule diameter should be less than 30 mm. As a multi-layer screen, this machine could come with seven layers of screen at most.
Working principle
linear vibrating screen use the vibration motor as the vibrating source to vibrate and cause the material throw up and meanwhile make forward straight motion. The material is fed evenly by charging port and is graded different spec overs, unders by multi spec mesh, then are discharge separately from different discharging port. It is suitable for powder, granule screening and separating.
Components

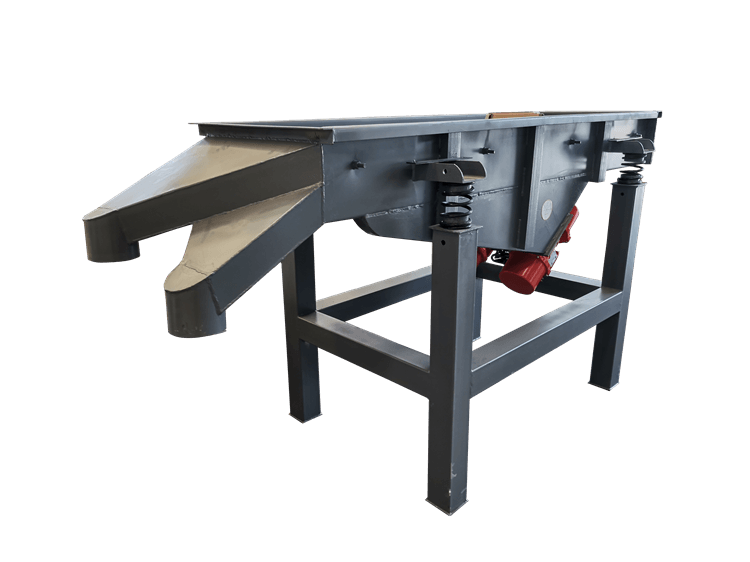

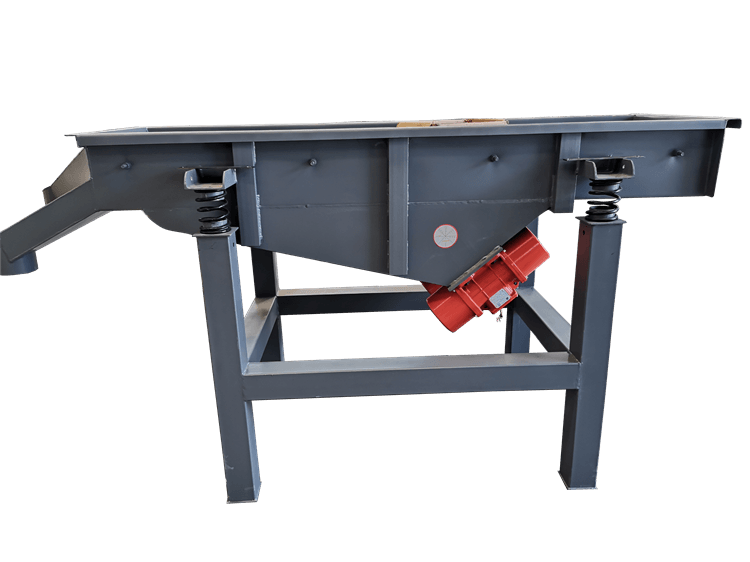

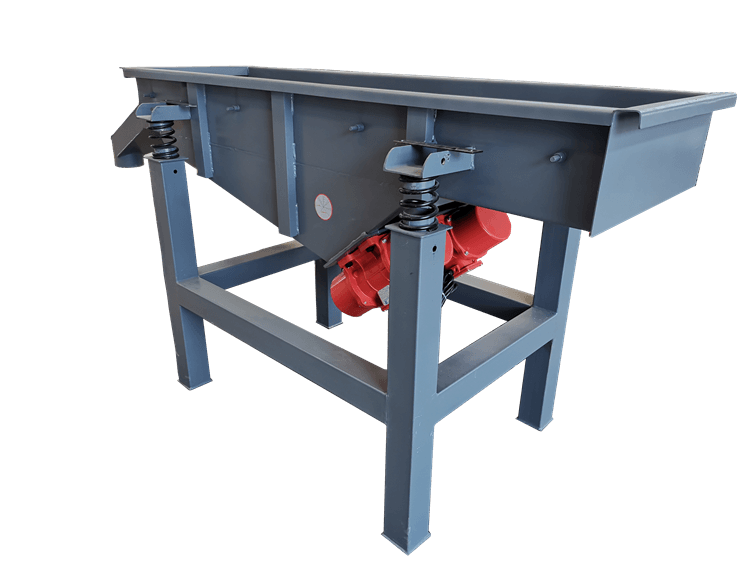

The linear vibrating screen is composed of screen box, screen frame, vibration motor, shock absorber and machine base. The two same vibration motors, as the vibration providers, are fixed on the top of screen box. They rotate synchronically in reverse directions.
Technical parameter
| Model | BZX–530 |
| Nominal size (mm) | 500×3000 |
| Material diameter (mm) | 0.074-10 |
| Screen slope | 1°-7° |
| Vibration amplitude | 3–4.5 |
| Layer number | 1–6 |
| Power(Kw) | 2×(0.4-0.75) |
| Size | 2740*870*1400MM |
FAQ
Please kindly provide the following information for a suitable vibrating screen model:
1.Your usage?
2.Your required capacity(t/h)?
3.The machine material?
(all stainless steel 304, or contact part stainless steel 304 or carbon steel Q235A material)
4.The layers?(1-5 layers all available)
5.The sieve mesh size (mm or mesh)?
6.The voltage?(220/240/380/415/450V are all available)
7.Your special requirements?
