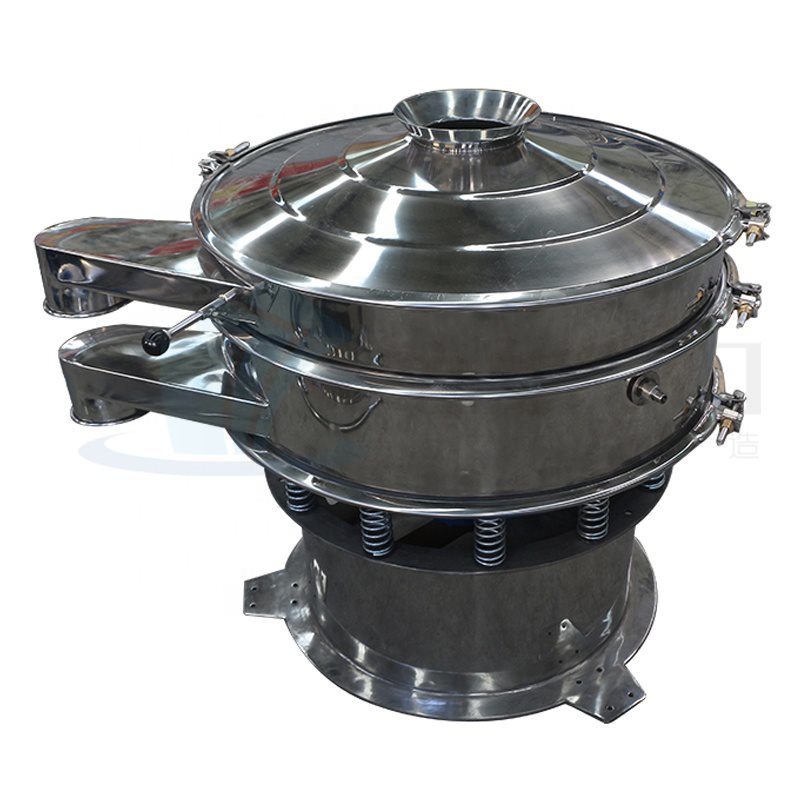

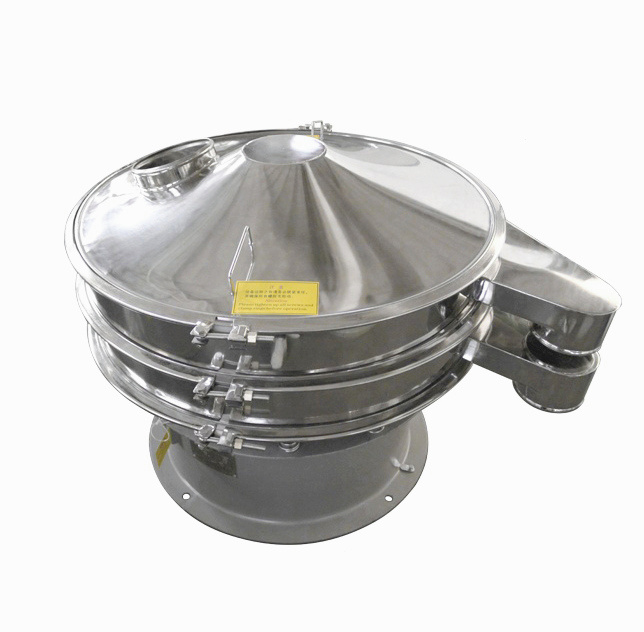

Large capacity rotary screening machine
Rotary screening machine is powdery material screening equipment.It is driven by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft.
Description
Rotary screening machine is powdery material screening equipment.It is driven by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft.
It is composed of anti dust cover, screen mesh, screen frame, mesh,clamp ring, charging port, discharging port,vibrating motor, screen base etc. We can custom the cover, feeding port, sight glass, apron, discharging port etc detailed demand.
Rotary screening machine material can be full SUS304 or 316 stainless steel, also can be base is carbon, the material touching part is stainless steel, or full carbon steel. For corrosive material, the screen can be chosen plastics material or telfon coating.
Features
Low energy consumption, low noise,
High screening accuracy, large capacity, simple structure.
The sieve deck is easy to replace, there are self-cleaning device – bounce ball;
Totally enclosed type, dustproof.
Low noise, high efficiency, all closed structure;
Technical parameter
| Model | Power(kw) | Valid Diameter of screen(mm) | Volume(mm) |
| B-600-1S | 0.55kw | 550mm | 800*800*750 |
| B-600-2S | 800*800*890 | ||
| B-600-3S | 800*800*880 | ||
| B-800-1S | 0.75 kw | 750mm | 900*900*780 |
| B-800-2S | 900*900*930 | ||
| B-800-3S | 900*900*1080 | ||
| B-1000-1S | 1.1 kw | 950mm | 1160*1160*880 |
| B-1000-2S | 1160*1160*1030 | ||
| B-1000-3S | 1160*1160*1180 |
Application
Food industry: can be used for processing starch powder, sugar powder, sale, rice flour, milk powder, soybean mile, sauce, fruit juice, condiment, and so on.
Chemical industry: widely used for handling resin powder, paint, industrial chemicals, detergent powder, cosmetics, Chinese medicine powder.
Customized services
1.Professional R&D team to develop customize as you requirements.
2.Help high-end customers and dealer to develop the local market
3.All packing, shipping and labels can customize as per your requirements.
