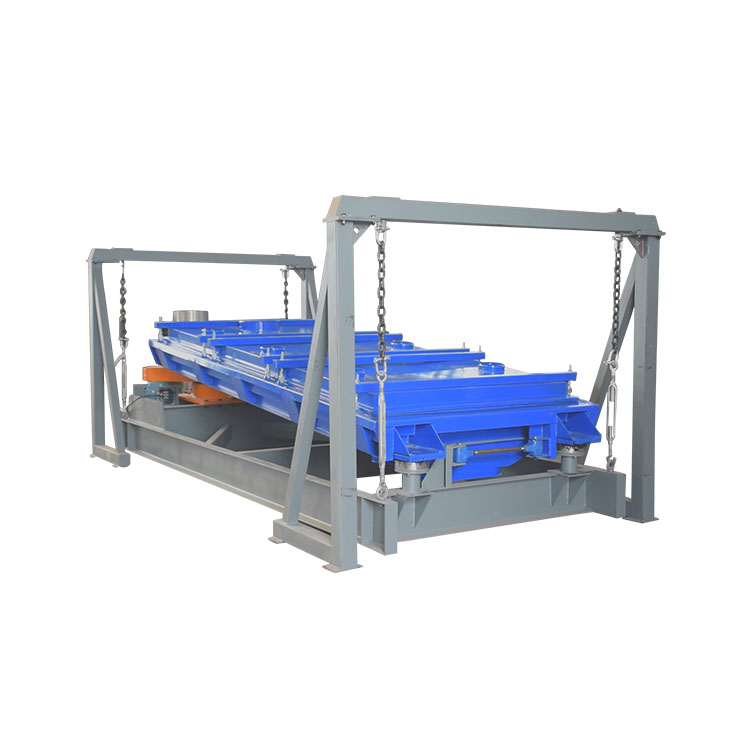

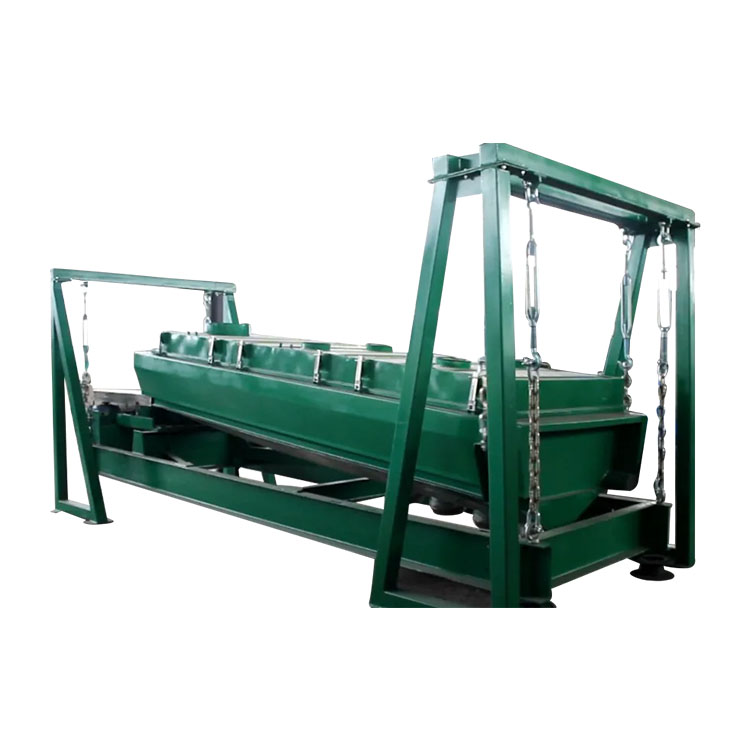

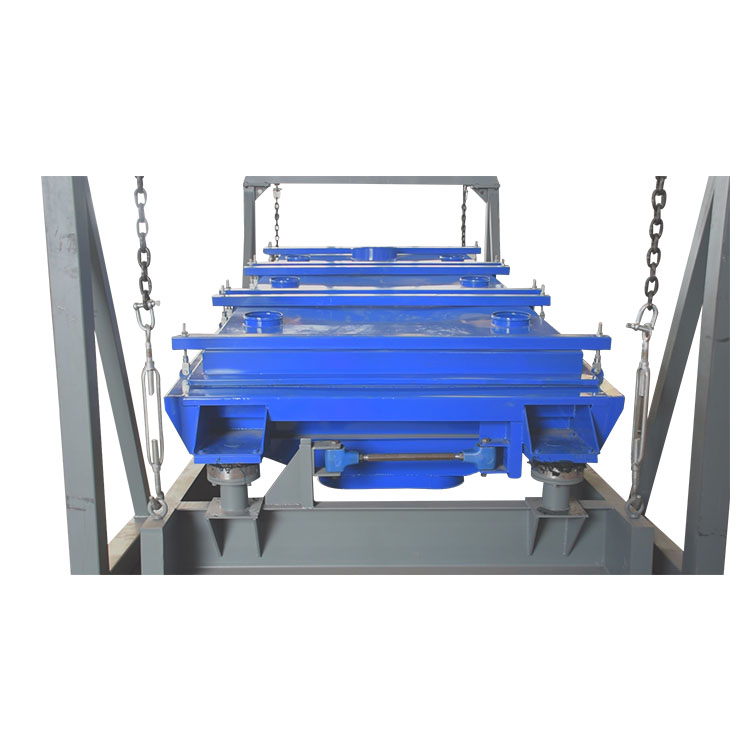

High efficiency salt sugar Rotex vibrating screen
Rotex vibrating screen is a large capacity and high accuracy sieving equipment with low loss for the material.
Description
Product description
Rotex vibrating screen is a large capacity and high accuracy sieving equipment with low loss for the material. It can screen variable shape material, such as circle, flake, irregular etc. The screen box do reciprocating motion under the role of inertia and take the material on screen surface to make up and down jumping motion. The material motion trajectory is circular on the feeding port, elliptical motion in the middle of screen, and the straight line on the discharge spout. The material is smaller than mesh aperture fall down the lower mesh, the larger material will automatically discharge from outlet.
Features
It is suitable for dry material or bulk solid material
High screening efficiency and a cleaner product
High production capacity
Unique screen mesh design
Quick change screen mesh
Technical parameter:
| Model | BPH-1236 |
| Screen size | 1.9*4.42M |
| Screening area | 4.32 m2 |
| Screen inclination | 5~8 |
| Layers | 1~8 |
| Power | 4 kw |
| Rotation frequency (r/min) | 180-260 |
| screening box travel(mm) | 25-60 mm |
Application
Rotex vibrating screen is new design for large output and high accuracy sifting machine.
It widely used for the fertilizer, salt sugar, cereal separation for batch sieving.
Cleaning device

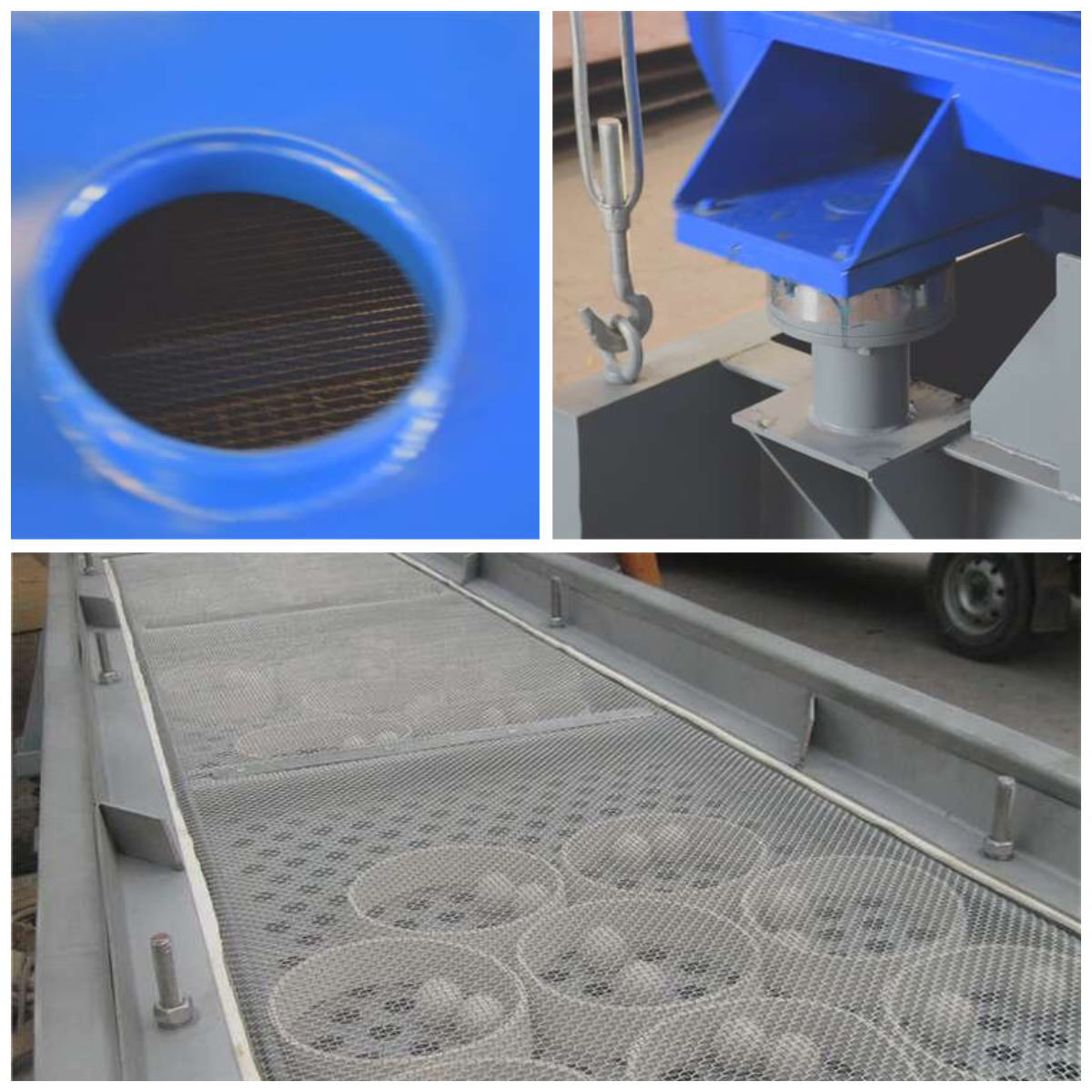

Every screen has self cleaning system which reduce the mesh blinding. It is composed of perforated plate and bouncing ball.
