double deck vibrating screen
double deck vibrating screen often is used to separate particle or powder material
Description
Product description
double deck vibrating screen often is used to separate particle or powder material. Double deck can get 3 product size. The vibrating sifter machine material can be carbon steel, carbon steel and stainless material contact part, and full stainless, and plastics. You can choose the suitable material according to your material characteristics.

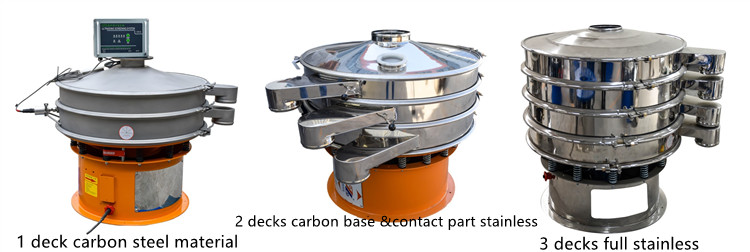

The max deck can be up to 5 decks and get 6 size products. You can choose the vibrating screen deck according to your actual screening demand.
Features
High screening efficiency, screening precision is more than 95%.
Outlet can be adjustable in the range of 360 degree
Vibrating screen base height can be customized
The replacing mesh operation can be finished during 3-5 min
Technical parameter
| Model | B-16 |
| Diameter (INCH) | 16 |
| Sieving area (M2) | 0.0907 |
| Motor Powder(kw) | 0.18 |
| package size(mm) | 580*580*560 |
| weight( kg) | 55 |
| Screen mesh | 2-500 |
| Layer | 1-5 |
| Customized service | Charging port: can be soft pipe or hopper Cover: Polishing or sandblast Material: stainless steel, carbon steel, material contact part stainless Motor brand: Oli motor well known brand or Chinese ordinary motor Discharging port: Straight Flo or valve control |
Application
double deck vibrating screen acts as a precise powder sieve to filter medium particles such as sand, powder and mucilage. It widely applied in chemical and pharmaceutical industries, metallurgy, mining industry, food processing, waste treatment etc.
Packages
Outer packing is plywood case, conform to the international exporting standards.
Inner packing is anti water plastics films.
All of package are wrapped by 0.5mm steel belt to further strengthen.
