Dia 600mm Vibro screen machine
Vibro screen machine is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source.
Description
Product brief
Vibro screen machine is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source. The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screen surface. The material discharging speed is control by adjust eccentric hammers phase angle or valve control.
Features:
Discharging port can rotate 360 degree
The material discharging speed can be control by manual valve or air valve
3-5 min quick change the screen mesh
Full enclosure can combine free dust conveying with free dust feeder and conveyor
The discharging port can be extended larger.
Technical parameter
| Model | B-24 |
| Diameter (INCH) | 24 |
| Sieving area (M2) | 0.02289 |
| Motor Powder(kw) | 0.25 |
| package size(mm) | 800*800*750 |
| weight( kg) | 98 |
| Screen mesh | 2-500 |
| Layer | 1-5 |

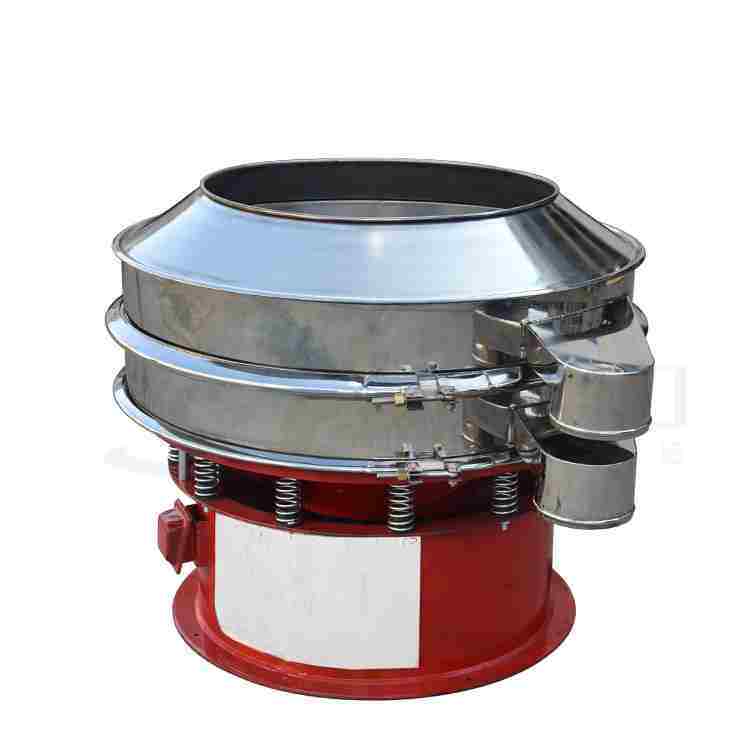

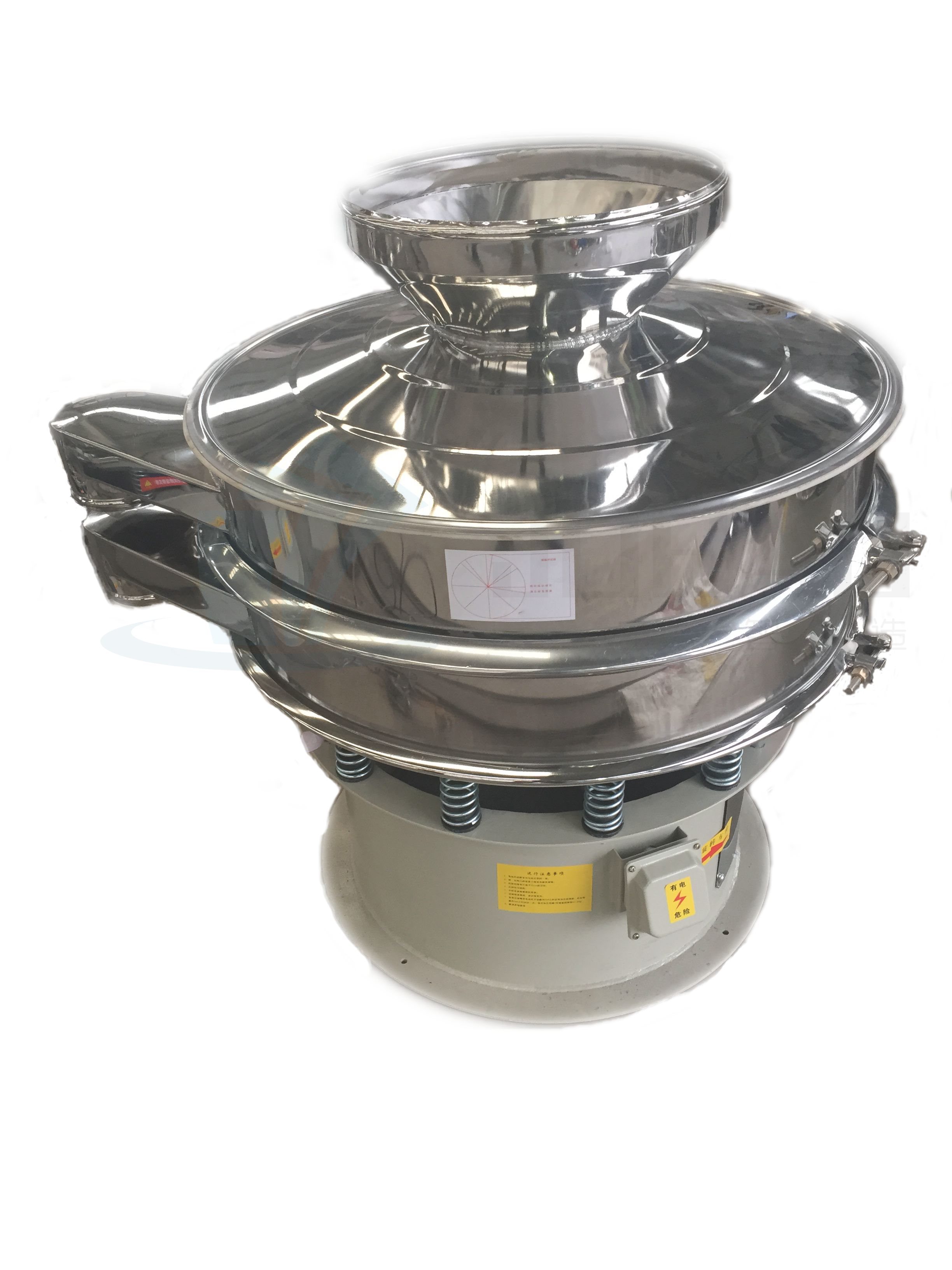

| Customized service | Charging port: can be soft pipe or hopper Cover: Polishing or sandblast Material: stainless steel, carbon steel, material contact part stainless Motor brand: Oli motor well known brand or Chinese ordinary motor Discharging port: Straight Flo or valve control |
FAQ
How To Choose Suitable Model?
- If you haveused the screen machinebefore, kindly please tell us its DIAMETER, LAYERS, MESH SIZES, MATERIALS.
- If you never use the machine until now, pls offer us the info about material as below:
2.1.Screening material? Bulk density?
2.2. Will you do a separation or dust-removal?
2.3. Output per hour(KG/H)?
2.4. How many Layers do you need? Mesh size of each layer?
2.5. Material requirement(Stainless steel or Mild Steel)
2.6. Voltage(V), Frequency(Hz), Phase(P)?
